DSW – Professional Vibratory Feeder Manufacturer Providing Customized Bulk Material Processing Solutions

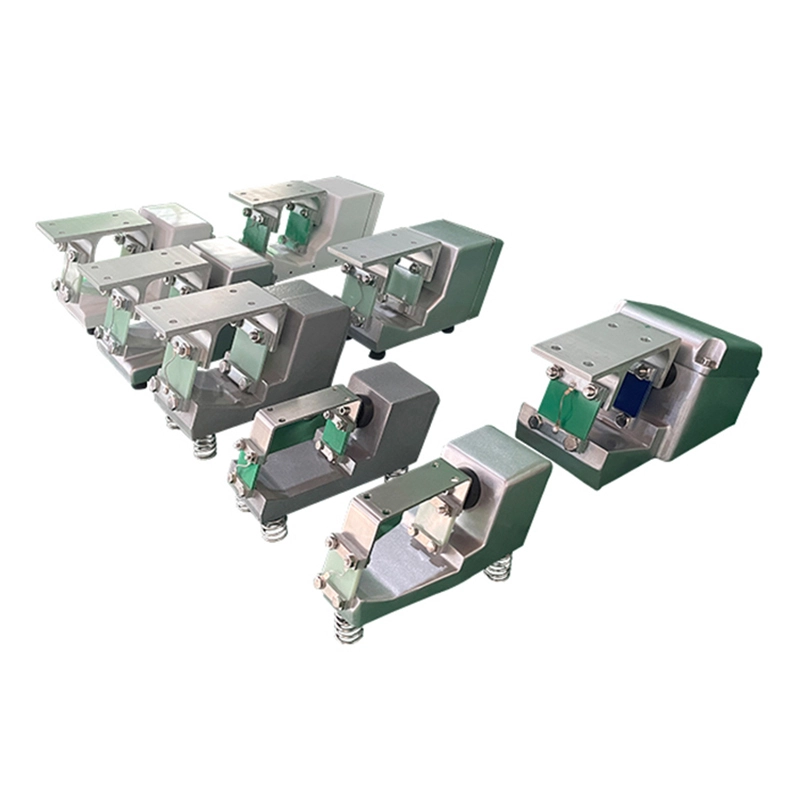

DSW Electromagnetic Vibratory Feeder Driver For Feeding Systems
DSW's electromagnetic vibratory feeder drivers represent the engineered for reliability and precision in material handling. As a core component of our vibratory feeding systems, this driver powers linear electromagnetic vibration feeders used across packaging, pharmaceutical, food processing, and mining sectors.
Our drivers feature a robust design with advanced electromagnetic excitation and phase-controlled regulation. This ensures smooth, continuous vibration with precise amplitude control, enabling uniform material flow and accurate dosing. Built for durability, the driver operates in harsh environments including high-temperature, corrosive, and explosive EX conditions, with models meeting CE certifications.
Our advantages
Key advantages include low power consumption, minimal maintenance (no rotating parts), and quiet operation.
The compact structure integrates seamlessly into automated production lines, supporting Industry with stable performance and long service life.
Product features
DSW offers customizable solutions — from standard units to special configurations for large-scale or explosion-proof applications. With global shipping and Alipay-secured transactions via Alibaba.com, DSW delivers high-performance vibratory feeder drivers backed by responsive technical support and a proven 0.1% repair rate.
Trusted by partners worldwide, DSW combines innovation, quality, and service excellence — making it the preferred choice for electromagnetic vibratory feeder drivers on Google and in factories.
parameter
|
Frequency |
50Hz, 60Hz |
|
IP Rating |
IP54, IP65, IP66 |
|
Materials |
Aluminium, glass springs, Mild Steel, Plastics, Rubber Lined, SS304, SS316L |
|
Voltage |
110V, 230V, 415V |
Applications
DSW vibrating feeder can be used in metallurgy, mining, coal, building materials, chemical industry, electric power, grain,
machinery and other industries, and can send granular and powdery materials to receiving devices evenly and continuously.
Product display
Technical parameters of common models
|
(DSOC) |
DSW |
||
|
Maximum trough weight |
2.0 KG |
||
|
Trough stroke |
1.14mm to 1.27mm |
||
|
Operating voltage: |
110V/220V/60HZ,110V/220V/50HZ |
||
|
Minimum natural frequency |
3780VPM,3180VPM, |
||
|
Maximum current rating(nameplate) |
0.35A/0.2A(0.6A/0.34A) |
||
|
DS0D |
DSW |
||
|
Maximum trough weight |
3.5KG |
||
|
Trough stroke |
1.4mm to 1.5mm |
||
|
Operating voltage: |
110V/220V/60HZ,110V/220V/50HZ |
||
|
Minimum natural frequency |
3780VPM,3240VPM, |
||
|
Maximum current rating(nameplate) |
0.9A/0.4A(1.7/0.75*) |
||
|
|
|||
|
(DS01) |
DSW |
||
|
Maximum trough weight |
3.9 KG |
||
|
Trough stroke |
1.3mm to 1.5mm |
||
|
Operating voltage: |
110V/220V/60HZ,110V/220V/50HZ |
||
|
Minimum natural frequency |
3780VPM,3240VPM, |
||
|
Maximum current rating(nameplate) |
0.9A/0.4A(1.7/0.75*) |
||
|
(DS02) |
DSW |
||
|
Maximum trough weight |
8 KG |
||
|
Trough stroke |
2.3mm |
||
|
Operating voltage: |
110V/220V/60HZ,110V/220V/50HZ |
||
|
Minimum natural frequency |
3780VPM,3100VPM, |
||
|
Maximum current rating(nameplate) |
0.9A/0.45A(1.53/0.77) |
||
|
|
|||
|
(DSFS01) |
DSW |
||
|
Maximum trough weight |
8 KG |
||
|
Trough stroke |
1.4mm to 1.5mm |
||
|
Operating voltage: |
110V/220V/60HZ,110V/220V/50HZ |
||
|
Minimum natural frequency |
3780VPM,3240VPM, |
||
|
Maximum current rating(nameplate) |
1.2A/0.6A(2A/1A) |
||
|
|
|||
|
(DSFS02) |
DSW |
||
|
Maximum trough weight |
15KG |
||
|
Trough stroke |
1.4mm to 1.5mm |
||
|
Operating voltage: |
110V/220V/60HZ,110V/220V/50HZ |
||
|
Minimum natural frequency |
3780VPM,3240VPM, |
||
|
Maximum current rating(nameplate) |
2.4A/1.2A(4.1A/2.0A) |
||
|
|
|||
|
(DSFS03) |
DSW |
||
|
Maximum trough weight |
25KG |
||
|
Trough stroke |
2~2.5mm |
||
|
Operating voltage: |
110V/220V/60HZ,110V/220V/50HZ |
||
|
Minimum natural frequency |
3780VPM,3240VPM, |
||
|
Maximum current rating(nameplate) |
6.0A/3.0A(10.0A/5.0A*) |
||
|
|
|||
|
(DSFS04) |
DSW |
||
|
Maximum trough weight |
50KG |
||
|
Trough stroke |
2~2.5mm |
||
|
Operating voltage: |
220V/60HZ,220V/50HZ |
||
|
Minimum natural frequency |
3780VPM,3240VPM, |
||
|
Maximum current rating(nameplate) |
6.0A |
||
